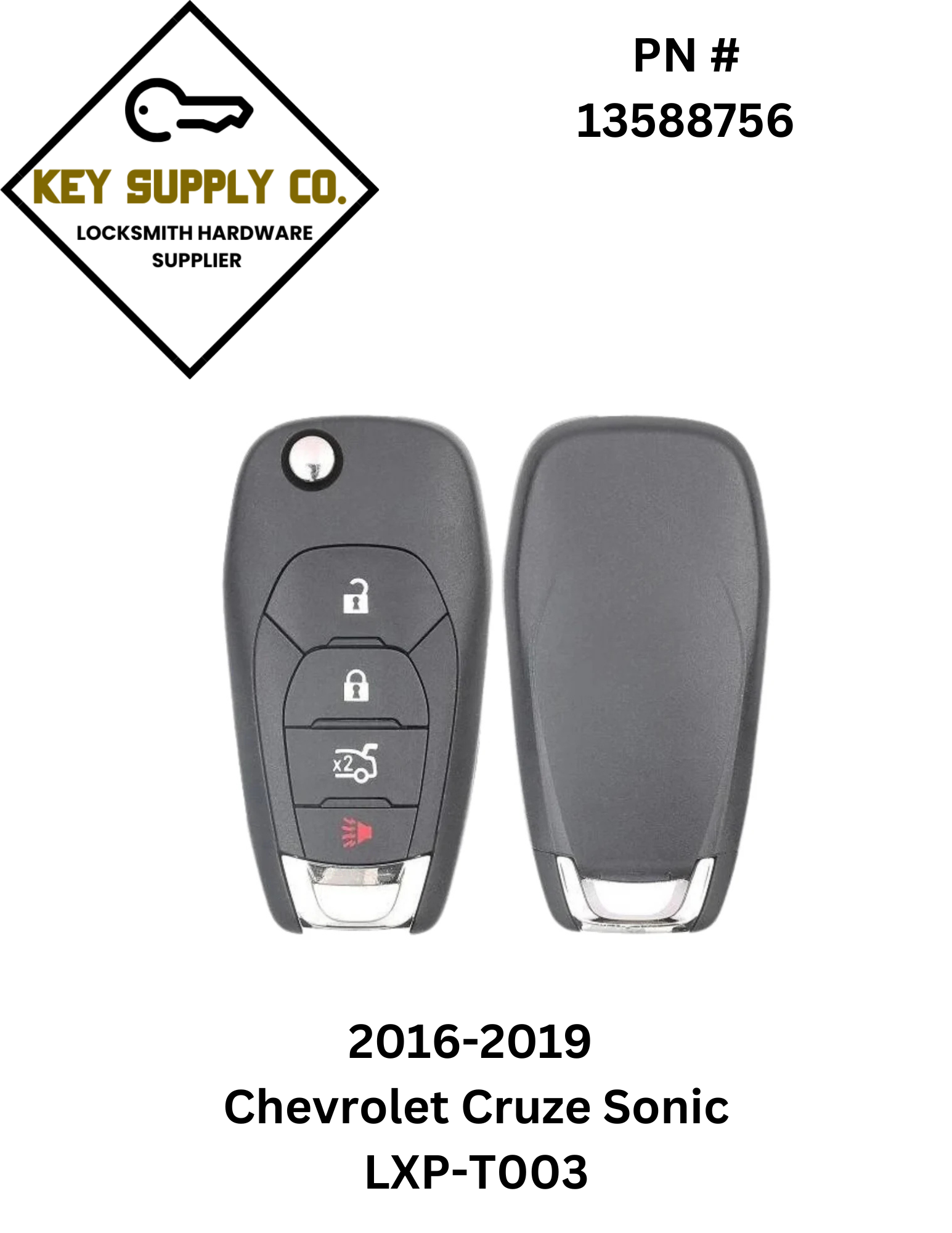

2016-2019 Chevrolet Cruze Sonic / 4-Button Flip Key / PN: 13588756 / LXP-T003 / 315 MHz / XL7 (AFTERMARKET)

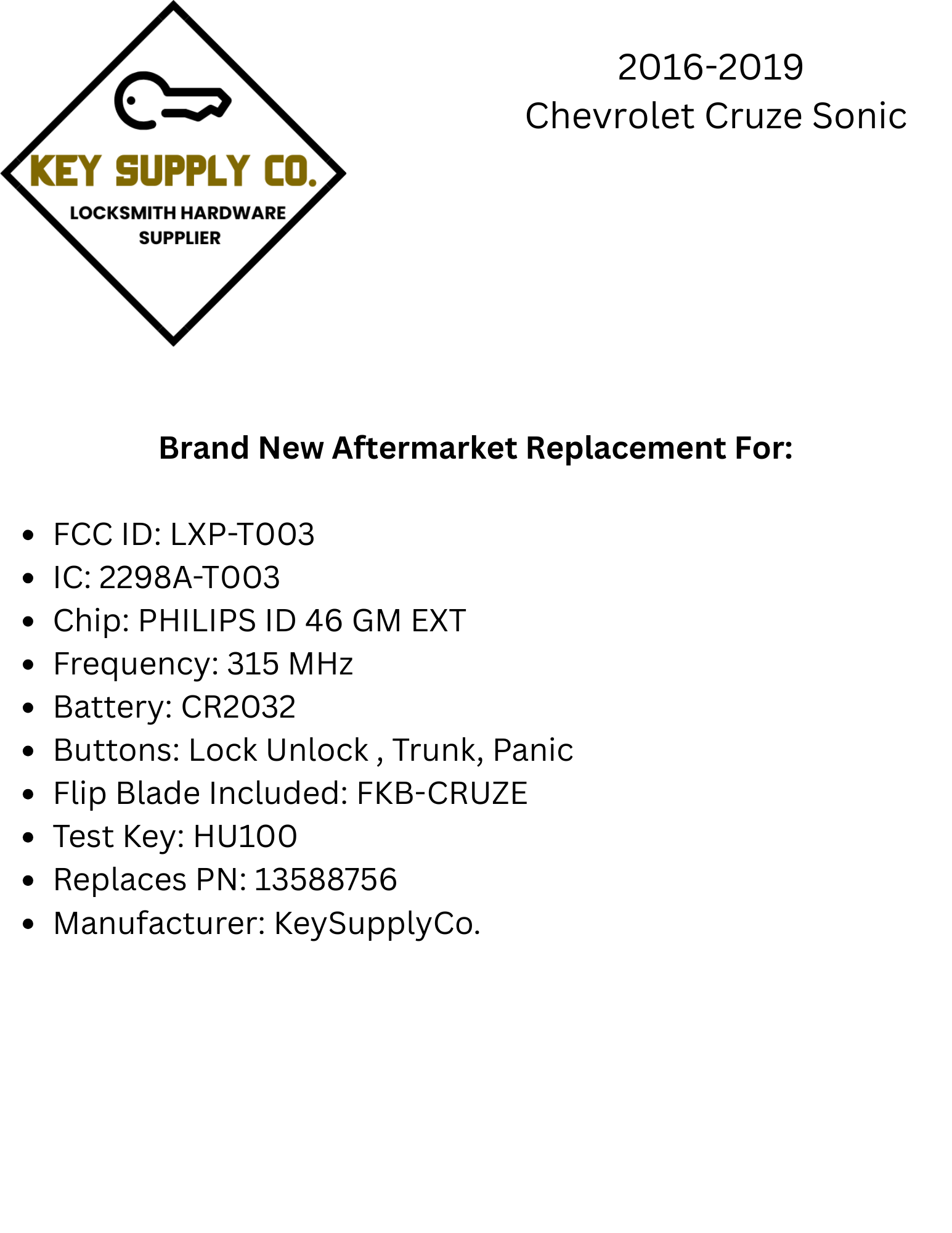

Brand New Aftermarket Replacement For:

• FCC ID: LXP-T003
• IC: 2298A-T003
• Chip: PHILIPS ID 46 GM EXT
• Frequency: 315 MHz
• Battery: CR2032
• Buttons: Lock Unlock , Trunk, Panic
• Flip Blade Included: FKB-CRUZE
• Test Key: HU100
• Replaces PN: 13588756
• Manufacturer: KeySupplyCo.

______________________________________________________________________________________________

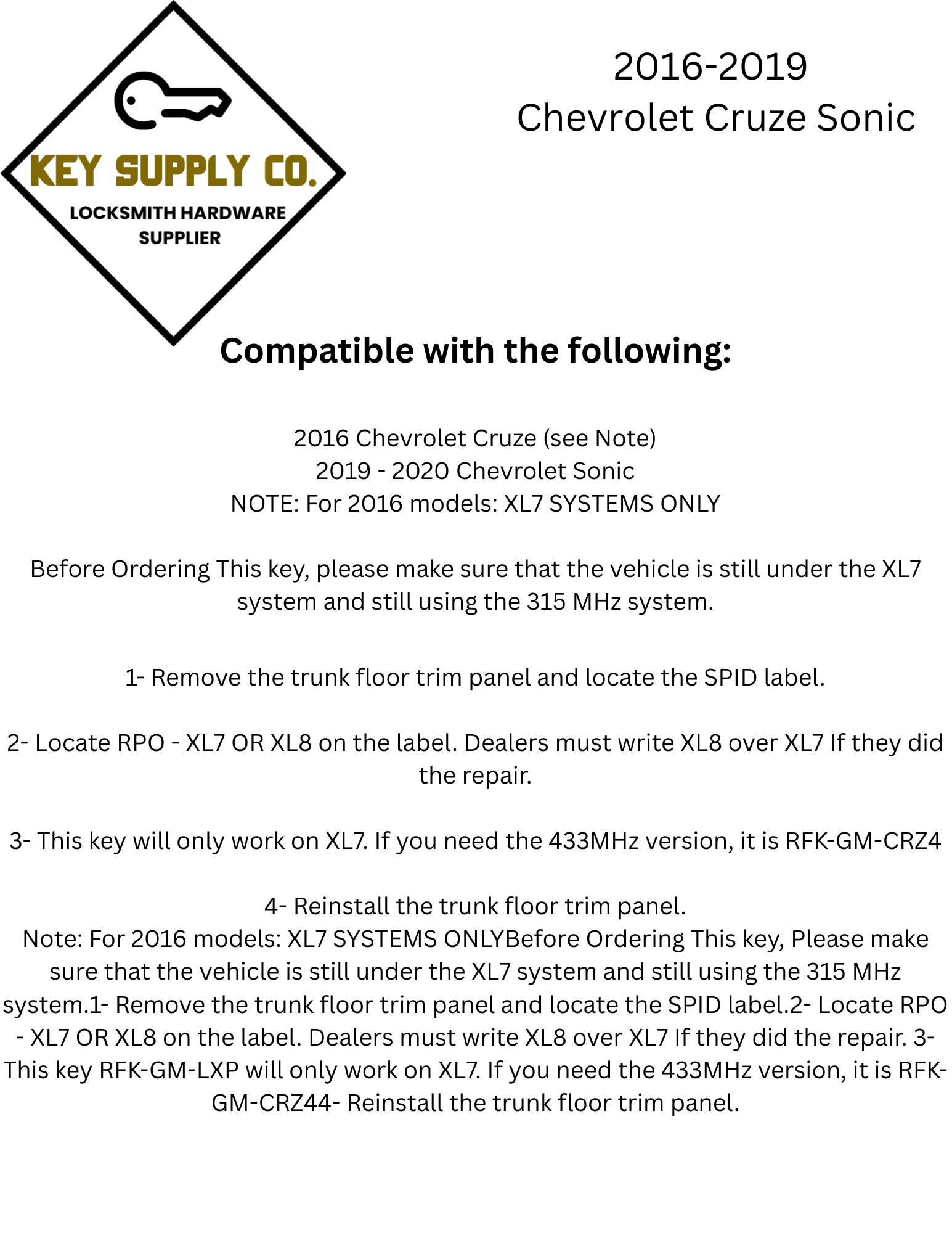

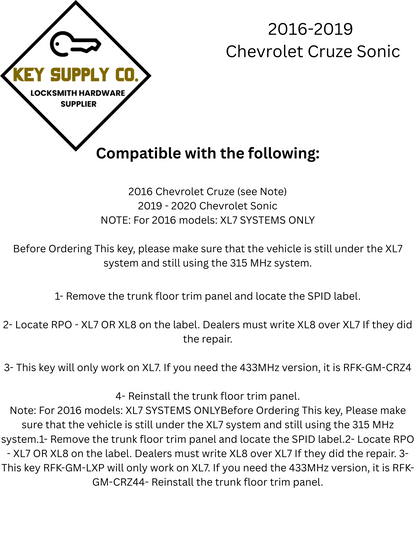

Compatible with the following:

2016 Chevrolet Cruze (see Note)

2019 - 2020 Chevrolet Sonic

NOTE: For 2016 models: XL7 SYSTEMS ONLY

Before Ordering This key, please make sure that the vehicle is still under the XL7 system and still using the 315 MHz system.

1- Remove the trunk floor trim panel and locate the SPID label.

2- Locate RPO - XL7 OR XL8 on the label. Dealers must write XL8 over XL7 If they did the repair.

3- This key will only work on XL7. If you need the 433MHz version, it is RFK-GM-CRZ4

4- Reinstall the trunk floor trim panel.

Note: For 2016 models: XL7 SYSTEMS ONLY Before Ordering This key, please make sure that the vehicle is still under the XL7 system and still using the 315 MHz system.1- Remove the trunk floor trim panel and locate the SPID label.2- Locate RPO - XL7 OR XL8 on the label. Dealers must write XL8 over XL7 If they did the repair. 3- This key RFK-GM-LXP will only work on XL7. If you need the 433MHz version, it is RFK-GM-CRZ44- Reinstall the trunk floor trim panel.
